FZ94 Evo Shop Roaster

FZ94 Evo Roaster

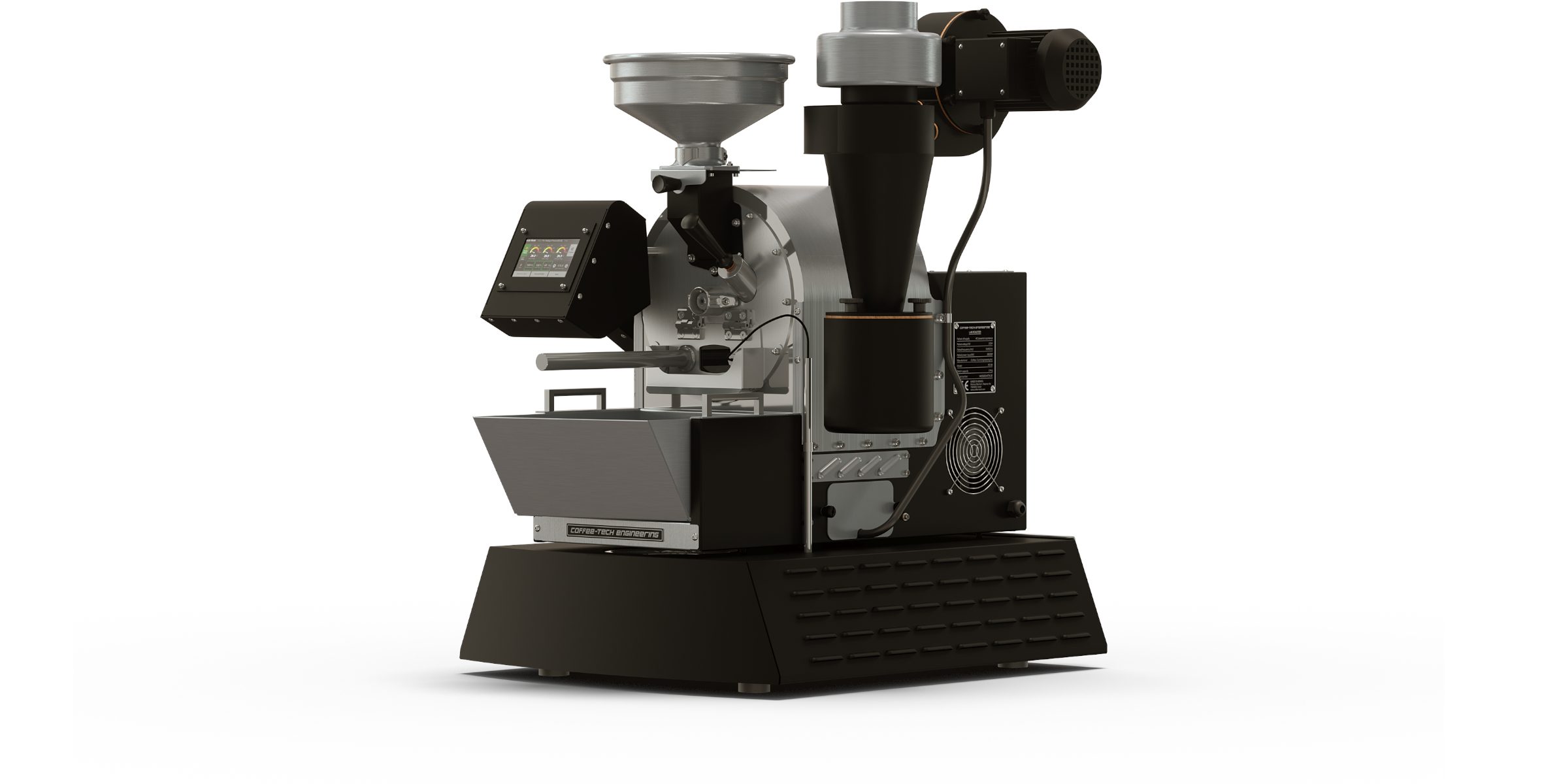

FZ94 Evo Front Right

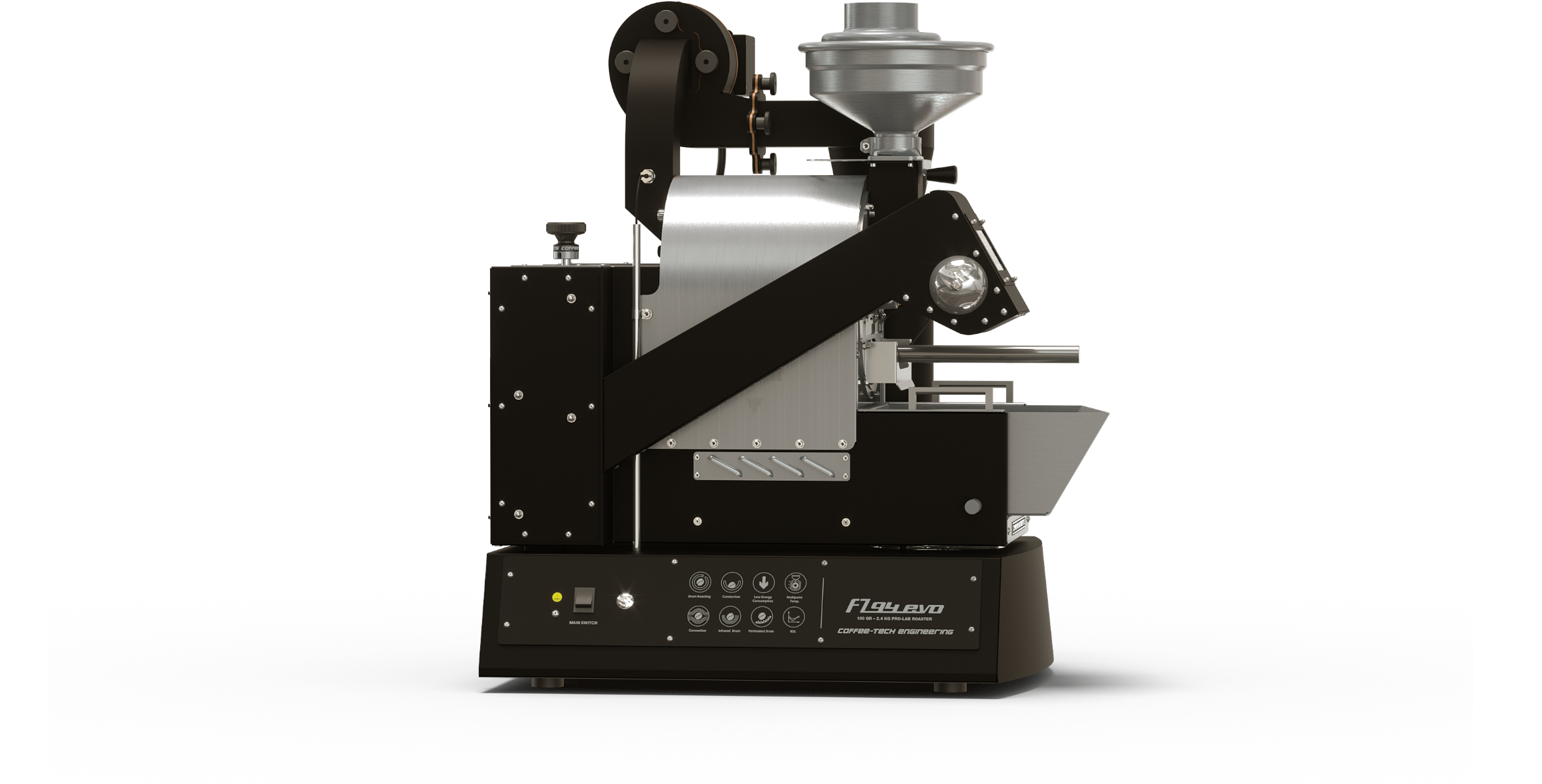

FZ94 Evo Left Side

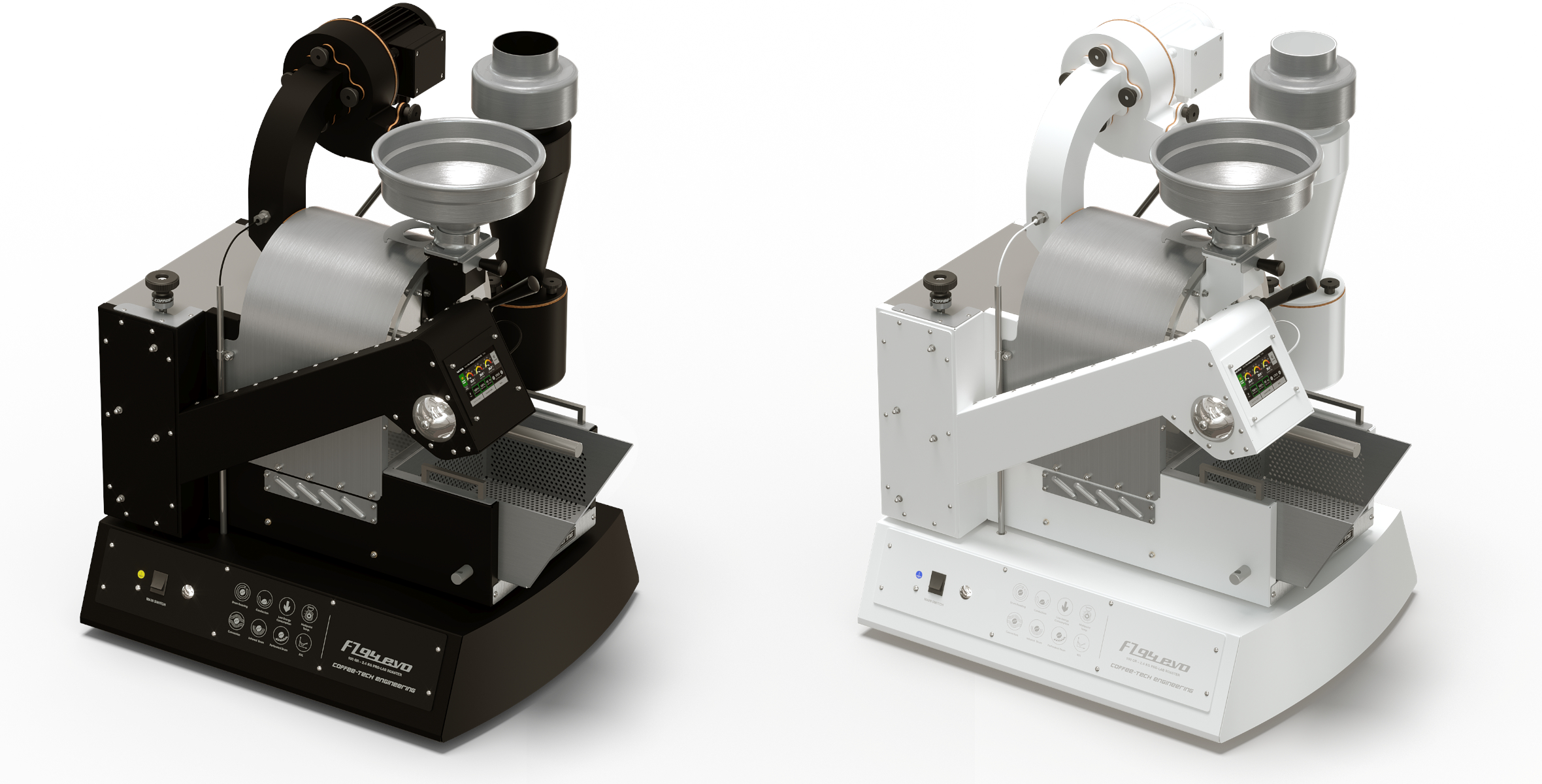

FZ94 Evo Above Left

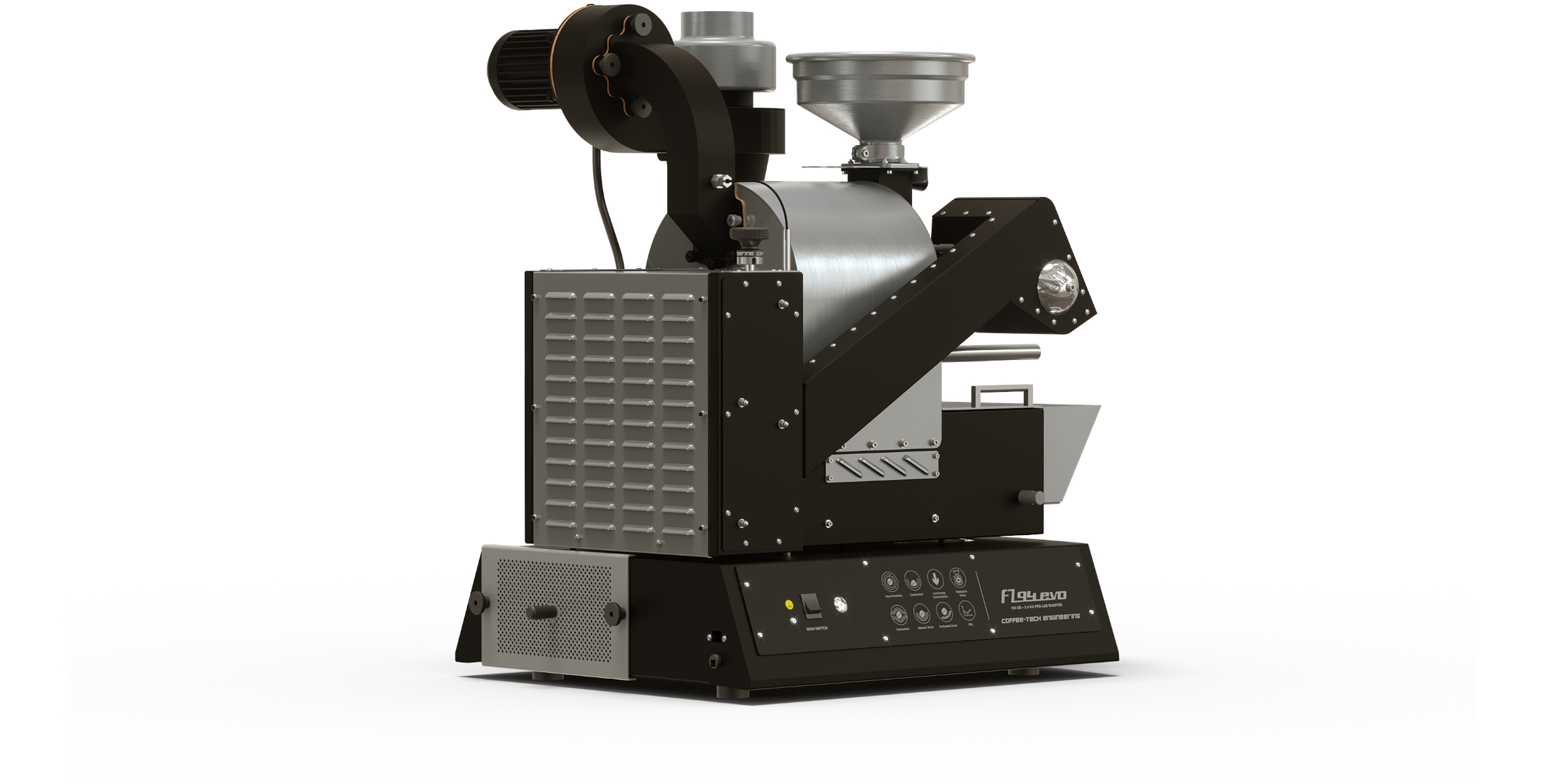

FZ94 Evo Rear Left

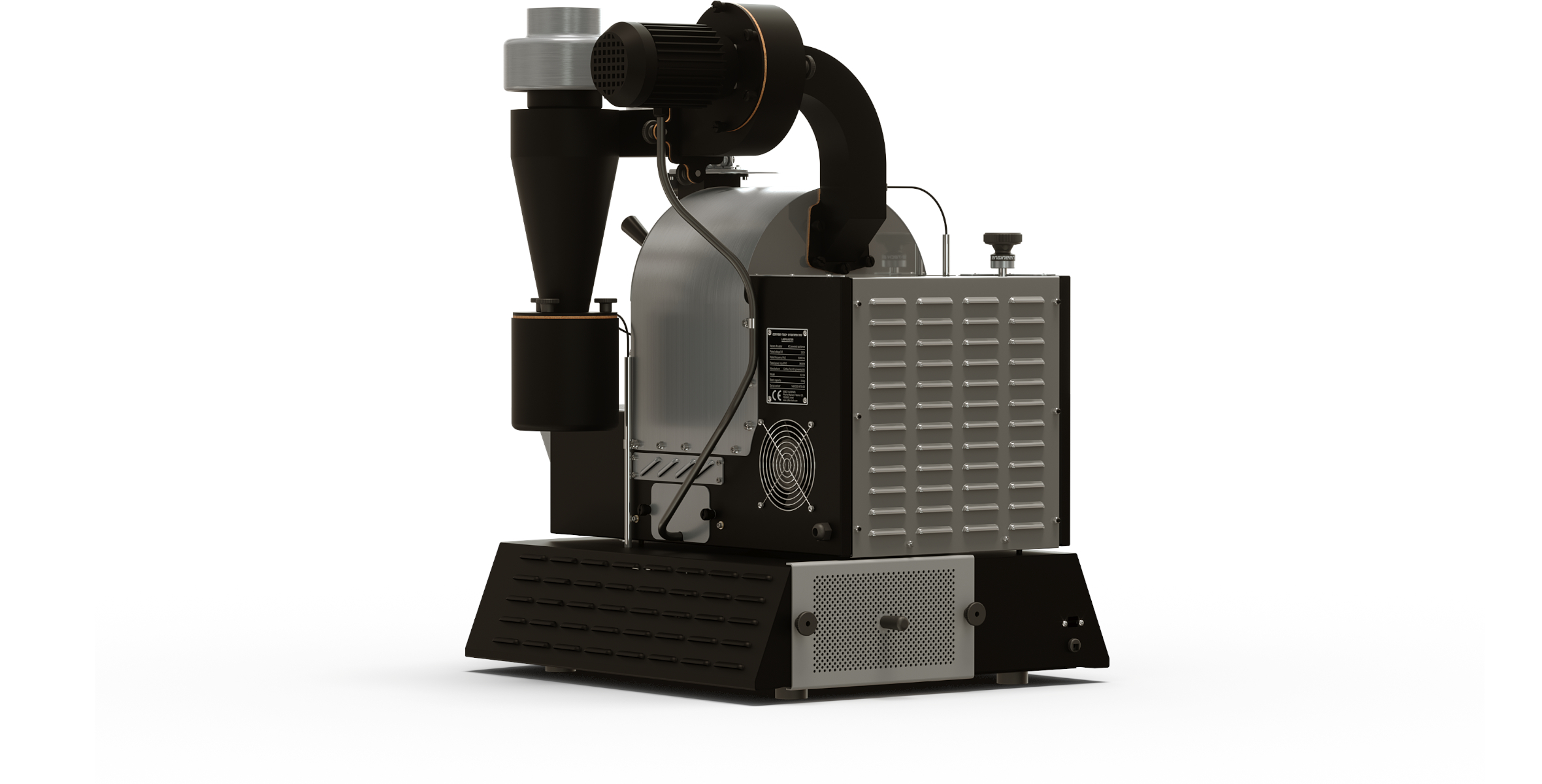

FZ94 Evo Rear Right

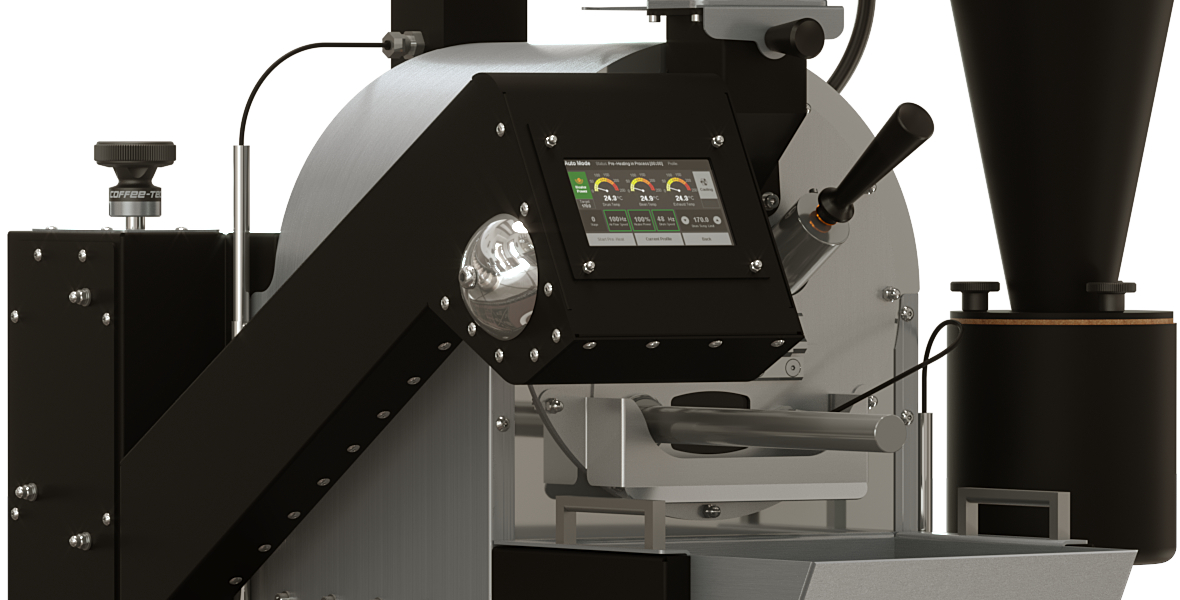

FZ94 Evo Touch Screen
‹ ›

Description

The FZ94 Evo gives roast masters intuitive control and unrestricted flexibility over the complete roasting process in every cycle. leveraging the benefits of our award winning FZ94 Pro-Lab, it marks an evolution in advanced lab and shop roasting.

  • AUTOMATED Roast Profiles: repeat your custom-designed profiles
  • Intuitively Operated: using a high-end touchscreen
  • Efficient Control: electric-driven heat modulation, from 1 to 100%
  • Wide Range of Batch Capacities: from 100g all the way to 2.4kg
  • Drum Speed and Venting Control: for precise results
  • Plug-and-Play Operation: intuitively easy to use
  • Precise Monitoring: via individual probes and PID controllers
  • Seamless Data Logging: record and analyze of your profiles
  • Small Footprint: and stunning design

Superb for easily repeating your automated profiles across a vast roast range, this lab and shop roaster is designed for accuracy, efficiency, and reliability. The FZ94 Evo propels your evolution as a roast master.

FZ94 Evo Roaster Dimensions

Who's using FZ94 Evo?

Kickturn Coffee Roasters
Small batch coffee roasters with an espresso bar located in Kimberley BC.
Sobhi NAKHLY
Sobhi Nakhly has been roasting and preparing original Arabic coffee for forty years near Nazareth.
Finca El Nazareno
A world class coffee farm and micro roastery located in Guatemala
Coffee Culture
Coffee Culture roasts top shelf coffees and has a museum dedicated to coffee technologies in Hölstein, Switzerland.
Manada Coffee Roasters
Specialty coffee roasters in Buenos Aires, Argentina
Bernards Coffee Shop
A specialty coffee roastery and coffee shop located on the Island of Martinique

Technology & Features

Drum Roasting
Drum Roasting
Roasting Methods
The primary roasting method in this roaster is drum roasting conduction.
Conduction
Conduction
Roasting Methods
Heat is delivered by direct contact between the beans and the hot surface of the drum
Convection
Convection
Roasting Methods
Hot air is forced through the beans
Infrared Radiation
Infrared Radiation
Roasting Methods
Heat radiation relies on optical eye contact between the heat source and the heated object.
Perforated Drum
Infrared Drum
Built in Features
Special drum designed to produce a stronger taste with higher levels of caramelized sugars and excel in rapid roasting times.
Multi Point Temp
Multi Point Temp
Control Features
Temperature probes gathering thermal data from the beans, exhaust & drum space
Blower Speed Control
Blower Speed Control
Control Features
Electronic drum venting control, setting convective heat percentage while roasting
Drum Speed Control
Drum Speed Control
Control Features
Electronic drum speed control, setting conductive heat percentage while roasting
Full Heat Modulation
Control Features
Fully control your heating elements from 0-100% power
Roast Data Logger
Roast Data Logger
Control Features
A PC-supported profile software, featuring beans temp', drum temp' and rate-of-rise graph
Touch Screen
Control Features
Our touch screen control system allows you full, simplified control and monitoring of your roasting process.
Automatic
Automatic
Control Features
Operation is run automatically and handled by an Automatic Roasting Management Software.
Manual Safety Crank
Safety
The manual safety crank allows you to manually evacuate your beans should your roaster loose its power supply.
Electric Heating
Heating Technology
Preserving the highest roasting quality utilizing only electricity. Safe, Green, Reliable, no gas required.
Smoke Free
Smoke Free
Optional
An efficient and green smoke elimination system, designed by Coffee-Tech R&D
Low Consumption
Low Energy Consumption
Sustainability
Energy efficient, low electricity consumption
Green Product
Green Product
Optional
This product excels in its low rates of emission and air pollution.

Technical Specifications

Batch Capacity
0.1– 2.4 kg (0.2 – 5.3 lbs.) of green coffee
Roasting Cycle
16-18 minutes for a full batch (after preheat)
Quality and safety compliance
CE, RoHS, EMC
Roasting Output
~10 Kg per hour
Electrical Specifications
220-240 Volts, 50/60 Hz, 3600 Watt single phase
Drum Motor
1/8 HP AC, heavy duty
Heating Method
Special made, electrical, high temp heating elements (3X1000 watt)
Chaff Collection
Cyclone type chaff collector for roasting and an additional trap box type chaff collector for the cooling
Operation Method
Manual or automated, modulated operation of heating elements; digital frequency inverters for controlling convection vs conduction ratio (airflow blower) & drum speed
Cooling
An external cooling group with removable perforated aluminum pan for immediate heat absorption and transformation, with a high capacity centrifugal cooling blower
Process Quality Control
Large Pyrex lens, sampler, and three separate temperature readings (beans, drum ambiance, and exhaust) for optimal monitoring of your roasting progress, data logging and automated roasting enabled
Dimensions
67(w) X 77 (d) X 88 (h) cm / 26(w) X 30(d) X 35(h) Inch
Weight
65 kg (143 Lbs)
